This page describes the current firmware version, which is 1.1.0

User Manual

Contents:

Hardware Installation

Setup is extremely simple:

  1. Install the module in a suitable Eurorack case.
  2. Connect a USB cable to your computer or iOS device.
  3. Turn on.
  4. (If relevant) select the ES-8 as the audio interface in your DAW.

Connection to an iOS device requires the Camera Connection Kit (30 pin or Lightning version as appropriate for your device).

Driver Installation

No driver is required for macOS or iOS.

Use with Windows requires installation of a driver. Please download the relevant version from the downloads page. Double-click the installer to run it, and follow the prompts to install the driver.

Power

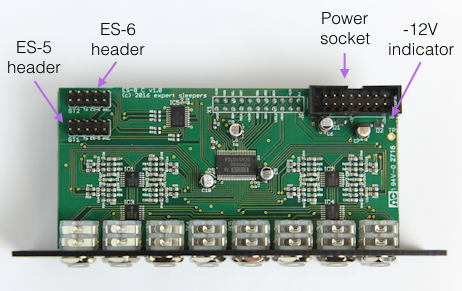

The power connector is Doepfer standard. If using the power cable supplied with the ES-8, the connector is keyed and will only insert into the ES-8 the correct way round, in which case the red edge of the cable is nearest the edge of the PCB, and carries -12V. Be sure to connect the other end of the power cable correctly, again so -12V corresponds to the red stripe on the cable.

Note that the ES-8 gets all its power from the Eurorack power connector. It does not draw power from the USB connection.

Inputs, Outputs & LEDs

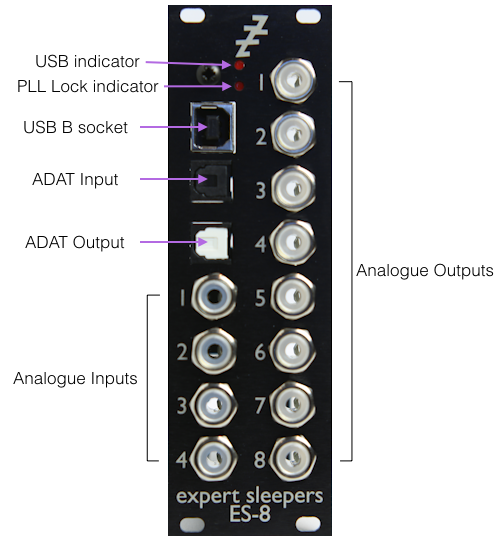

The ES-8's analogue inputs are on the left; the outputs are on the right.

There are two LEDs on the front panel:

  • The top LED indicates that the ES-8 is connected to a USB host.
  • The bottom LED indicates that the ES-8's clock PLL has locked and is generating a valid audio clock.

Clock

By default the ES-8 runs off its own internal clock source. The sample rate (44.1/48/88.2/96kHz) is normally selected in your DAW application.

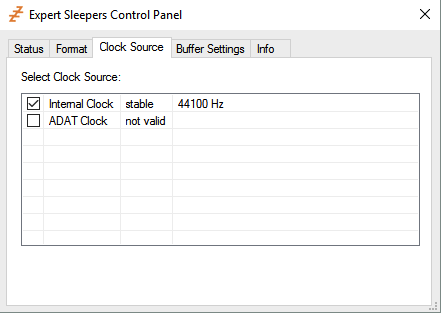

You can also change the ES-8's settings via the Audio MIDI Setup utility in macOS, or the Expert Sleepers Control Panel (installed with the driver) in Windows.

If an ADAT signal is connected to the ES-8's ADAT input, you can select 'ADAT Clock' as the clock source, in which case the ES-8 will automatically lock its clock to that of the incoming ADAT signal.

Expansion

Connection to ES-5 and ES-6 modules is exactly as described in their respective user manuals (the manuals refer to the ES-3 as the base module, but the connections are the same). The user manuals are here (ES-5) and here (ES-6).

Note that there is a further socket at the top of the module, between the outermost circuit boards. This is a programming/debug heaader and is not for end-user use. Do not plug anything into here.

Standalone Operation

(Note - this feature was added in firmware v1.1.0.)

Without a USB connection, the ES-8 operates in 'standalone' mode. In this mode

  • the incoming ADAT channels drive the ES-8's analogue outputs
  • the ES-8's analogue inputs are available at the ADAT output

Since the ES-8 only has four analogue inputs, the last four ADAT output channels will be silent.

The ES-8 will sync to the incoming ADAT clock, if any. With no ADAT input, it will use its internal clock, in which case anything using the ES-8's ADAT output will need to sync to the ADAT clock.

ADAT at Double Sample Rates

The ADAT protocol intrinsically only supports operation at 44.1 or 48kHz. Most audio interfaces that run at double sample rates (88.1/96kHz) use two ADAT ports and a variant of ADAT known as 'SMUX' to support this.

The ES-8 takes a different approach. At 88.1/96kHz, every other audio sample on the ADAT outputs is thrown away, reducing the signal to 44.1/48khz. Thus, the full channel count on an attached ES-3 (for example) is maintained even at 96kHz. Similarly, every audio sample arriving on the ADAT input is doubled up.

This basic sample rate conversation is likely to be fine if the signals are CVs. For audio, you might want to consider adding some filtering into the signal chain to avoid aliasing.

Note that the above only applies if the ES-8 is running at 88.1 or 96kHz. At 44.1/48kHz, everything is running at its natural rate, nothing is thrown away or fabricated, and there are no odd aliasing concerns.

Also, for the avoidance of doubt, if the ES-8 is running at 88.1/96kHz then its own analogue inputs and outputs are running at that rate.

Firmware Updates

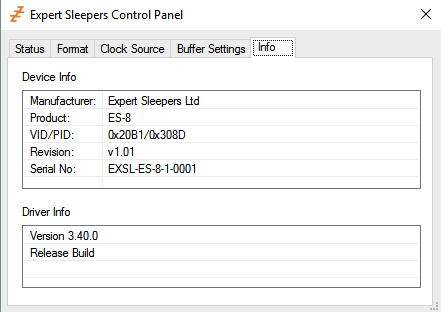

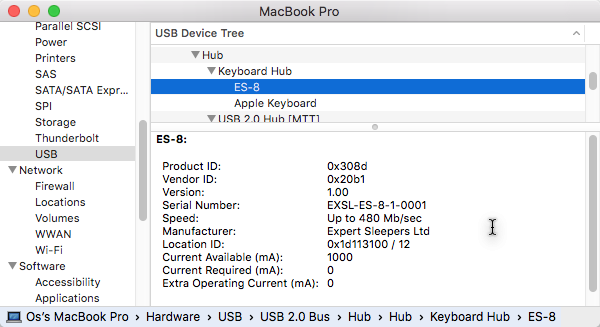

The ES-8's current firmware version can be viewed in the macOS System Information utility, or in the Expert Sleepers Control Panel (installed with the driver) in Windows:

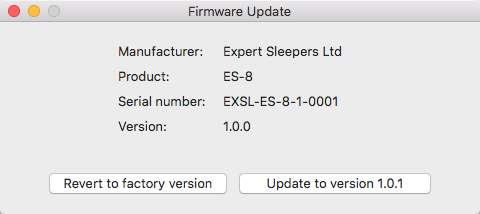

Firmware updates are provided in the form of an updater application, which can also revert the ES-8 to its factory-installed firmware.

(Note - at this time the updater is only available for macOS (10.10 and higher).)

The update process is as follows.

  1. Connect the ES-8 to the computer and power it on.
  2. Run the updater application.
  3. Click the 'Update to version ...' button.
  4. Wait for it to complete. When complete the application will display the message 'Update complete', and the version number shown in the application window should match the one in the 'Update to version ...' button.

To revert to the factory installed firmware, the process is the same, except you click on the 'Revert to factory version' button and on completion the message is 'Revert complete'.

Please watch this forum thread for firmware update notifications.

Firmware downloads

Version Date Changes Download Notes
1.1.0 30/1/2017 Added standalone mode. Download Do not apply if the current firmware version is 1.2.0 or higher
